What’s New 2018.12

December 17, 2018
ModuleWorks announces the release of its 2018.12 CAD/CAM software components. This is the third major release of 2018 and is available now for download from the ModuleWorks website.

ModuleWorks is at the forefront of multi-axis machining and simulation technology, providing the toolpath and simulation technology that powers many of the leading CAM systems around the world today.

With this latest release, ModuleWorks launches its new components for Fused Deposition Modeling (FDM). There are also new features for 5-axis, 3-axis and 2-axis machining, machine simulation, the MultiXPost post processor and the NC Editor.

Additive Machining

Additive_manufacturing_component

Fused Deposition Modelling

ModuleWorks now supports Fused Deposition Modelling (FDM). This is one of the most popular additive manufacturing methods, especially for plastics such as ABS and PLA, and it is currently one of the most cost-effective technologies for manufacturing 3-dimensional objects.

FDM works like a hot glue gun, where the object is printed onto a moveable and heated build plate. To ensure a high quality printed structure, ModuleWorks 2018.12 offers different infill patterns with a defined density and rotation angle that can be applied to each layer of the infill. A support structure can be created for overhangs and an additional brim layer can be used to provide extra adhesion to the plate. To check whether the nozzle is correctly calibrated and whether the material has been sufficiently heated, a skirt line can be printed around the model.

5-Axis Machining

Side tilt by contact point

This convenient new tilting option for 5-axis machining lets you define tool axis tilting by specifying a contact point on the tool profile. This significantly simplifies operational setup, especially for tools with complex profile geometries, such as barrel tools. Users can specify a static contact point or a dynamic range, allowing the contact point to change along the contour.

Automatic tilting for barrel mills

Automatic tilting for barrel mills is a new feature that offers enhanced collision control by smoothing the toolpath and ensuring that the tool moves fluently.
The blending distance option provides even more control by adding orientation points in the event of a collision.

2-Axis Machining

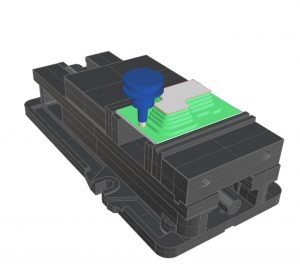

Dynamic holder collision avoidance for 2-axis roughing

To enhance machining safety and productivity, this new feature takes the shape of the holder and arbor into consideration during the toolpath calculation to avoid collisions between the entire tool and stock material.

3-Axis Machining

Intermediate_slices_filtering_for_3-axis_roughing

Intermediate slices filtering for 3-axis roughing

This time-saving feature eliminates machining of very thin slices that result from the cusps left over by the previous operation. The user-defined threshold lets you avoid these unnecessary toolpath segments to speed up the machining process and increase productivity.

Machine Simulation

MachSim_New_simulation_controls

New simulation controls

New options have been added to the Machine Simulator to give users more control over the simulation process. You can now step forwards and step backwards to the next/previous feed move, jumping over (fast simulating) the rapid moves.

Utilities

Find the optimal solution

To accelerate machining, this new feature automatically finds the optimal solution that contains the minimum number of retracts and rewinds.

Machine simulation

When an NC file is loaded in the NC Editor, you can now see the corresponding machine model in the simulation viewport. To provide full control over the display, there are options to hide the machine or make it transparent.

Further Details

For further details about the ModuleWorks 2018.12 release, see the latest ModuleWorks YouTube videos.
