Real-Time Machining Simulation for Digital Dentistry

May 26, 2020

Until now, real-time machining simulation was not being used in digital dentistry.
We saw a great chance to change this.

Christian Heine, CEO of CIMT

ModuleWorks, Bosch Rexroth and CIMT have combined their technologies to bring real-time machining simulation to digital dentistry.

ModuleWorks real-time simulation runs directly on high-end CNCs and provides accurate 3D visualization of the machining process including material and machine simulation. Bosch Rexroth has integrated this functionality into its MTX CNC that enables operators to view the simulation either directly on the CNC’s touchscreen HMI or on a remote device such as a laptop. CIMT, a Germany-based specialist for integrated milling technology, saw the potential of this technology for digital dentistry and is now using the Bosch Rexroth MTX with integrated ModuleWorks simulation for its high-performance Tizian 5.4 dental milling machine.

Dr. Karsten Kreusch and Soroosh Eghbali

The CIMT 5-Axis Milling Machine, Tizian 5.4, at EMO 2019

Dr. Karsten Kreusch (left) Product Management CNC and Motion Control Systems, Bosch Rexroth.

Soroosh Eghbali (right) Head of CAM Automation and Digital Dentistry, ModuleWorks.

As Christian Heine, CEO of CIMT explains:

“Real-time simulation is already the standard in many machining applications, but until now it was not being used in digital dentistry. We saw a great chance to change this. The ModuleWorks simulation software is directly integrated in the Bosch Rexroth HMI which enabled us to quickly and efficiently build it into our dental milling solution.”

Soroosh Eghbali, Head of CAM Automation & Digital Dentistry at ModuleWorks:

“It’s great to see how CIMT is using the simulation technology from our industrial portfolio to add value to digital dentistry. This brings us closer to our vision of providing the most advanced manufacturing technology to the digital dentistry market and creating more efficient workflows that optimize the profitability of dental labs and practices.”

Tightly integrated in the MTX, the ModuleWorks simulation technology has direct access to the real axis positions, machine geometries and workpiece position and uses the same motion data as the real servos to deliver a highly accurate real-time simulation of the entire machine kinematics. CIMT operators benefit from a detailed and unobscured visualization of the whole dental machining process from every angle in real-time. The simulation also offers visual aids such as a deviation analysis to highlight the rest material after machining.

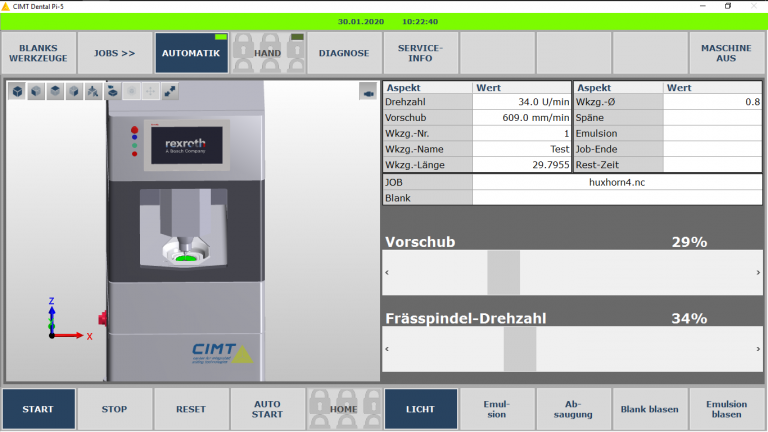

CIMT Dental interface
CIMT Dental interface with integrated ModuleWorks machining simulation

Dr. Karsten Kreusch, Product Manager CNC and Motion Control Systems at Bosch Rexroth:

“Because the ModuleWorks simulation technology is integrated in our MTX CNC, all the machine parameters and data are included in the simulation and you can easily catch potential problems that you cannot see during a CAM simulation.”

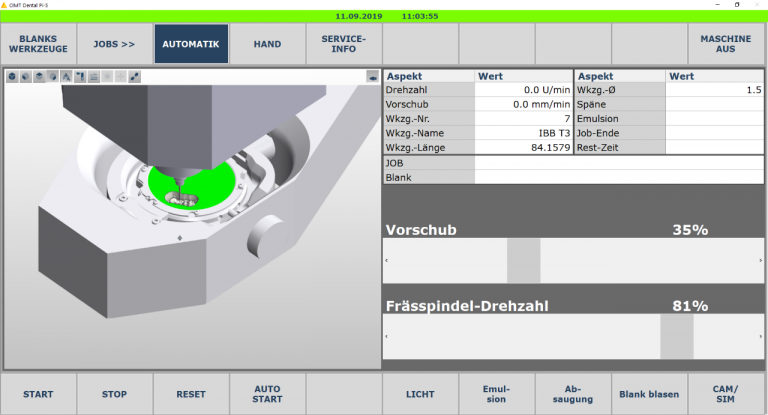

The simulation provides a clear and detailed visualization of the machining process

Used in combination with the Bosch Rexroth digital twin, the ModuleWorks technology also enables CIMT operators to simulate the dental machining process offline on a virtual machine to quickly identify and fix any problems before starting the real machining job. This reduces machine downtime, keeps production moving and ensures cost-effective use of material in dental labs and practices.

Mark Foti, Head of Digital Factory at ModuleWorks:

"It's exciting to see how shop floor technology developed by ModuleWorks is being leveraged and used across multiple industries. Our goal is to develop versatile technology that can be integrated and used in many different ways to help our partners, regardless of which business area they are in, to Get There Faster."

Close up of the CIMT Tizian 5.4 dental milling machine
